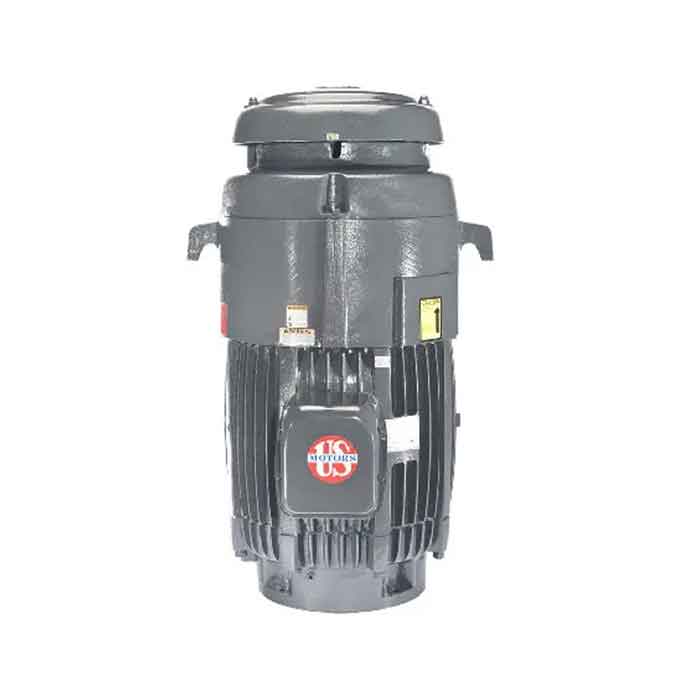

Motor vertical eje hueco 125HP USmotor 440TP
Motor electrico 1200rpm 125HP 460v, Horsepower 125 – KW: 93.25, Enclosure TEFC, Poles 6, RPM: 1200, Frame Size 447-TP, Phase/Frequency/Voltage. 3Ph 60Hz 460V, Starting Method Direct-On-Line Start, Winding Type Random Wound, Service Factor 1.15, Insulation Class «F» -Insulife 2000, Altitude In Feet (Max) 3300 Ft.(1000 M) +40 C, Efficiency Class Premium Efficiency Application Vertical Centrifugal Pump, 16.5″ Base – Coupling Size: 1-11/16″ Bore, 3/8″ Key, Motor Type Code TUCS, Corro-Duty, Counter CW Rotation FODE, Ground Lug In Conduit Box, 115 Volt Space Heaters Motor electrico horizontal

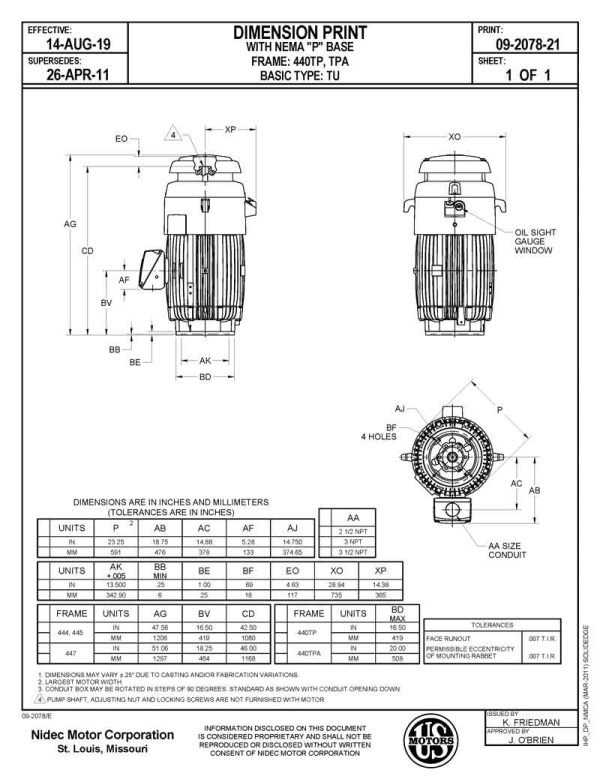

PDF1
Producto original
Hecho con orgullo en:
Aún no hay valoraciones.
