Motor vertical eje hueco 1500HP USmotor DI-178196

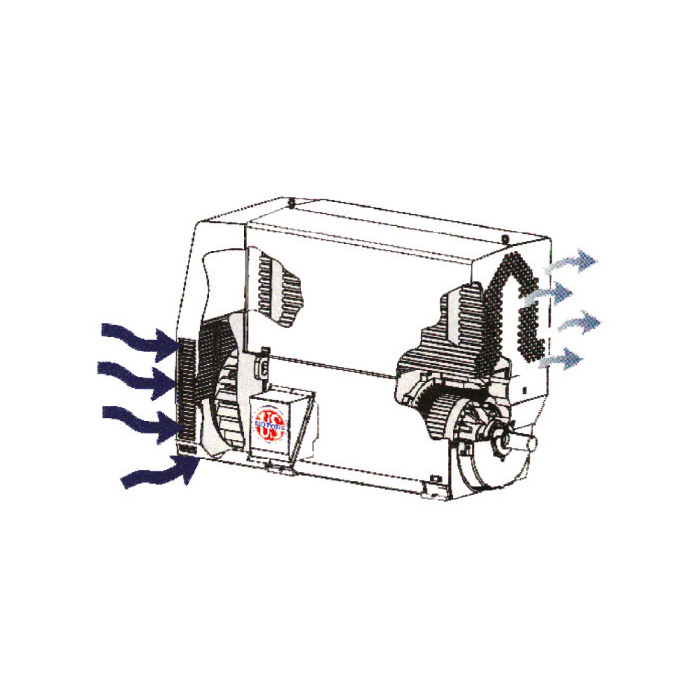

MOTOR ELECTRICO Horizontal, FRAME 8411S, POTENCIA 1500 HP, MATERIAL DEL CUERPO HIERRO FUNDIDO, VELOCIDAD 3573 RPM, TIPO K, VOLTAJE 4160 V, CORRIENTE 180 A, POSICION HORIZONTAL, TIPO DE ENCERRAMIENTO TEAAC, TIPO DE SEGURIDAD CLASE I,DIVIS II,GRUPO C y D, CANTIDAD DE FASES 3, FACTOR DE POTENCIA 0.906, FACTOR DE SERVICIO 1.15, FRECUENCIA 60 Hz, TIPO DE CORRIENTE ALTERNA, TIPO DE CONSTRUCCION DEL MOTOR B, NORMA NEMA NEMA 4X, EFICIENCIA 95%, TEMPERATURA DE FUNCIONAMIENTO 90 °C, TIPO DE ENFRIAMIENTO VENTILACION FORZADA, TEMPERATURA MAXIMA 115 °C (CLASE F). Motor 1500HP 3600RPM – 4160v 8411S TEAAC HORIZONTAL TEAAC Premium Eff. Add. SH115V / TB42 / TW42, TITAN Horizontal, TEFC Enclosure, Form wound, 1.15 Service Factor on Sine Wave Power, Class «F» insulation, InsuIife 5000 insulation System, 3300 ft(1000m) Altitude, +40 C Ambient, “F-1″ Assembly Position, Premium Efficiency, Centrifugal Pump Application, Self-Certified Division 2 – Class 1, Group C & D – T2B Temp Code, Temperature Rise (Sine Wave), Class “B” Rise@ 1,0 Service Factor (by Resistance), Direct-On-Line start, Continuous Duty, 95.4 % Full Load Efficiency, Typical Efficiency, Driven Load inertia: NEMA, Standard Load inertia: 902 LB-FT2, Starts Per Hour: 2 Cold/1 Hot (NEMA Standard), Inpro Seal – Both Ends, Direct Connected to Load, Corro-Duty, CCW Rotation w/Rotation Arrow FODE, Insulated Bearing – Short End, 115-volt Space Heaters, Special Space Heater Max TerNo, Synthetic Lubrication, 100 Ohm Bearing RTD – Both Bearings, 100 Ohm Winding RTD’s, NEMA 4X, Epoxy Coat, Size 3.0C, Conduit Opening Size (AA): 3.5, Bottom Of Conduit Box, Q-1 Accessory Outlet Box, Accessory C/B 1 info:, Cast iron Box, NEMA 4X Epoxy Painted Box, Opposite Side of Main O/B, 1 » NPT Conduit Opening, With Terminal Board (30OV) Motor electrico horizontal
