Motor vertical eje hueco 40HP USmotor 8D40P1CS

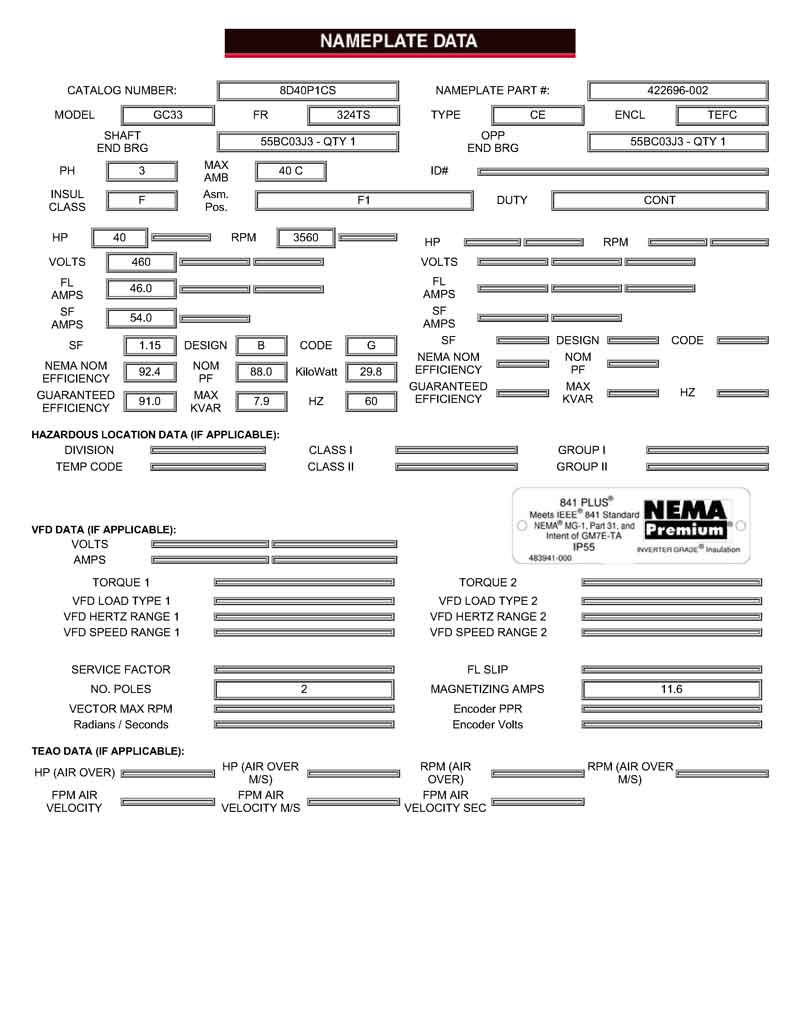

Motor electrico Catalog#: 8D40P1CS, Model#: GC33, 40 HP, TEFC, IP55 – 3560 RPM fr 324TS 460V, General Purpose Three Phase. Totalty Enclosed Fan cooled (TEFC), World Motor 841 Plus, NEMA Premium Efficient APPLICATIONS, For constant speed and inverter duty applications in petro-chemical, pulp & paper, automotive, mining and waste treatment industries, lnverter Grade – lnsulation System (Meets NEMA MG-1 Part 31, class F Insulation, Class B Rise At Full Load (Sine Wave Power), All cast Iron, Construction, corrosion Resistant Mill & Chem Duty Paint (500 Hour Salt Spray Test), stainless steel Nameplate & Zinc Plated Hardware, 40oC Ambient, NEMA Design B Performance (Sine Wave Power), VBXX Bearing isolators By lnpro/Seal, On Both Ends For 1P56 Bearing Protection, same size Regreasable open Bearings, stainless Steel Breathers/Drains, 5 Year warranty (3 Years on lnverter Power), External Grounding Provision, Epoxy Coated Rotor, 20:1 (3-60hz)Variable Torque; 5:1 (12-60Hz) constant Torque on lnverter Power, Precision Balance (<0,5 in/Sec Vibration), 1.15 SF on Sine Wave / 1.0 SF on lnverter Power, Meets or Exceeds IEE Std 841-2021, Self-Certified class 1, Division 2, Groups A, B, C & D. Motor electrico horizontal
PDF1

Producto original

Hecho con orgullo en:
